| Pipe Cleaning Equipments |

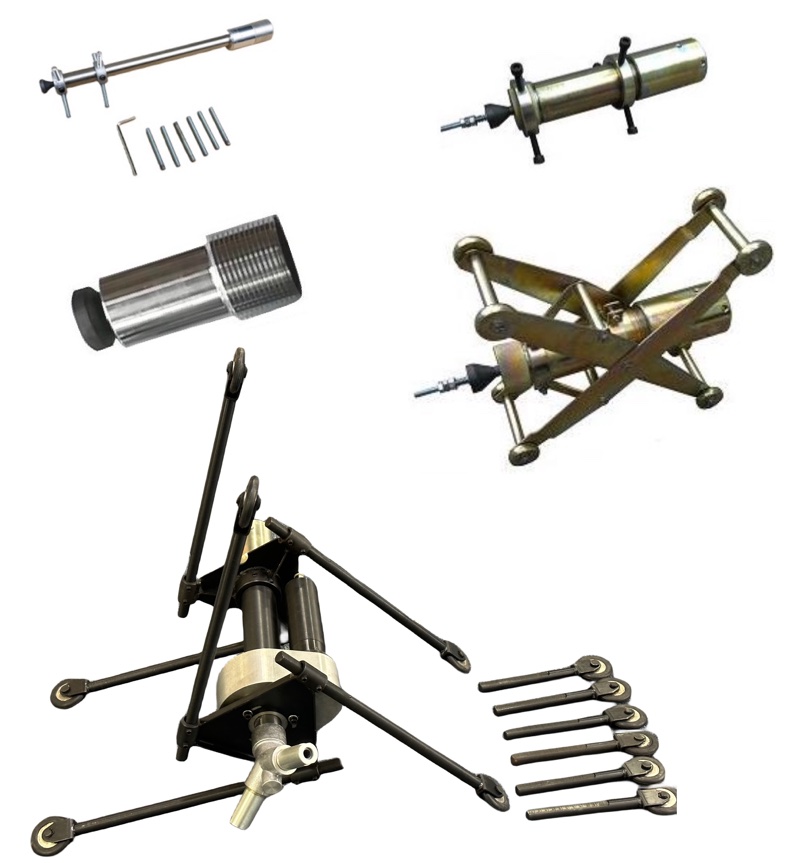

Internal pipe blasters are specially designed to blast internal surface of pipes dia from 35mm to 900mm. The blaster is connected to a blast machine in place of a standard blast nozzle.
To blast clean the interior of a pipe, connect the blaster to a blast machine firmly, put the blaster into the pipe and pressurize the machine. Push the blaster through the pipe, abrasive and blasted material will be blown out the other end.
|
Modle: IPB100.
Without centering collars for pipe ID 40mm.
With centering collares for pipeID 40-100mm.
Air source: 0.3-0.7 MPa
Air consumption: 7.8 m3/min
Blast capacity: 15 m2/h
Cleaning grade: Sa2.5-3.0
Adoptable abrasive: Brown fused alumina, steel grit, steel shot.
Abrasive size: 1.4mm max

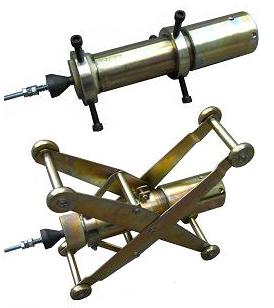

Modle: IPB300.
Without centering collars for pipe ID 76mm.
With centering collars for pipe ID 76mm-127mm.
With centering carriage for pipe 127-300mm ID
Air source: 0.3-0.7 MPa
Air consumption: 7.8 m3/min
Blast capacity: 15 m2/h
Cleaning grade: Sa2.5-3.0
Adoptable abrasive: Brown fused alumina, steel grit, steel shot.
Abrasive size: 1.4mm max
|
|
 |
|
 |
|

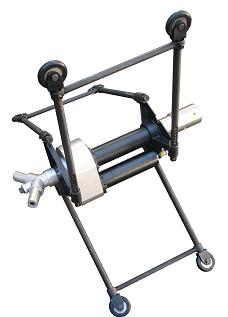

Model: IPB900.
processable pipe: 300mm-900 ID, with 2 sets of legs.
Specifications:
Air source: 0.3-0.7 MPa
Air consumption: 7.8 m3/min
Rotary speed: 80RPM
Nozzle: 2pcs B4C nozzles, option: 6m,8mm,9mm
Blast capacity: 16-21 m2/h
Cleaning grade: Sa2.5-3.0
Adoptable abrasive: Brown fused alumina, steel grit, steel shot. |
|
|
|
| Pipe Coating Tools |
|

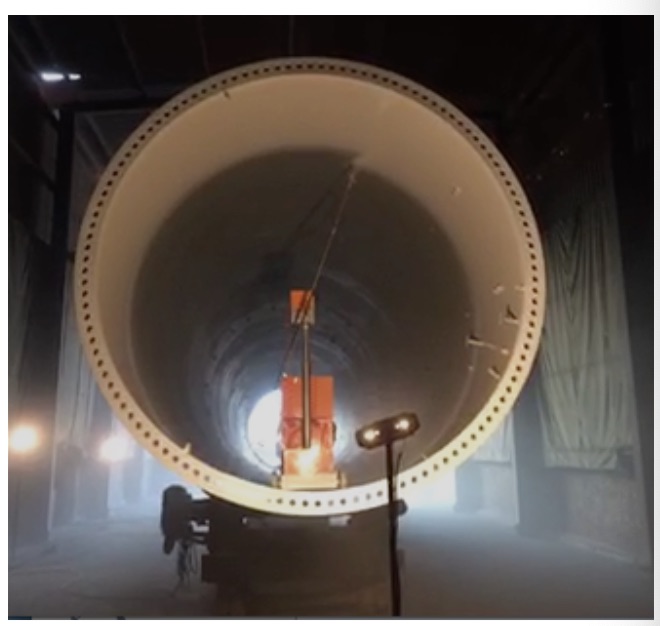

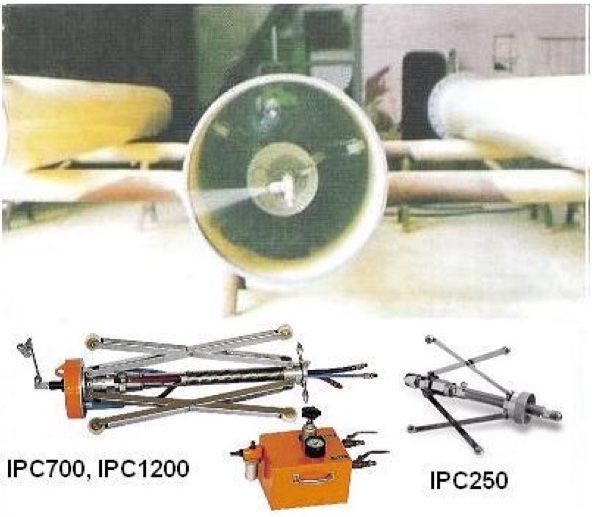

Interior pipe coater is specially developed for coating of the interior surface of pipe or tube without need to rotate pipe or tube. |
| Model |
IPC250 |
IPC700 |
IPC1200 |
| Processable pipe, ID mm |
50-300 |
250-700 |
300-1200 |
| Processable pipe Length, m |
15 |
15 |
15 |
| Air inlet pressure, Mpa |
|
0.4-0.6 |
0.4-0.6 |
| Tip rotary speed, rpm |
|
10-100 |
10-100 |
| Dimension, mm |
50 x 280 |
250x250x630 |
300x300x950 |
| Weight, kg |
0.9 |
12.8 |
18 |
| Supplied |
IPC250 with manual spray gun and 5 meterhigh pressure paint hose
IPC700, !PC1200 with control panel, filters, pressure gauge, pressure regulator, and 2 pcs of 15 meter long PU hoses, etc. |
|
|
