Tumbling blast cabinet consists of cabinet enclosure, cyclone reclaimer, dust-collector, and electrol control, etc. The blast room is specially designed to have a basket or barrel or a belt containing large number of small parts and tumble over automatically. It offers efficient
processing to
clean, peen,
deburr, or
finish small parts, most suitable for
automotive rebuilders and small parts
manufacturers.
Adoptable blasting media: Fused alumina, silicon carbide, garnet, glass bead, etc, grit 60#-100#.
Features:
1.Tumbler unit for working small parts in automatic mode.
2. Safety interlocks interrupt blasting if the door
is opened.
3. 3mm steel plate welded construction, with properly
formed bends, forms a rigid, long-lasting cabinet shell.
4. Large glass window.
5. Pressure regulator, gauge, and electric switch
mounted within easy reach.
6.Finishing time duration is controlled by timer to achieve the expected finishing state without labor force.

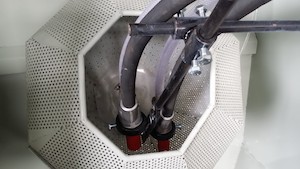

| Model |
9080D Tumbling basket blast cabinet |
 |
| Main cabinet |
1300 x 900 x 1600 mm |
| Weight |
320 kg approx. |
| Blasting room |
900 x 800 x 580 mm |
| Basket size |
dia. 204 x 318 mm, |
| Basket speed |
8.0 rpm |
| Basket motor |
380V/3ph/50Hz, 200W |
| Exhauster motor |
220V/1ph/50hz, 370W |
| Ventilation |
8.5 m3/min |
| Illuminance |
2 x 13W |
 |
| Suction Blasting gun |
2 pc, including Boron carbide nozzle dia 8mm |
| Dry filter dust Collector |
16 cotton filter tubes, manually dust cleaning . |
| Compressed air source |
5-7 bar, 1.6-2.0 m3/min dry clean compressed air |

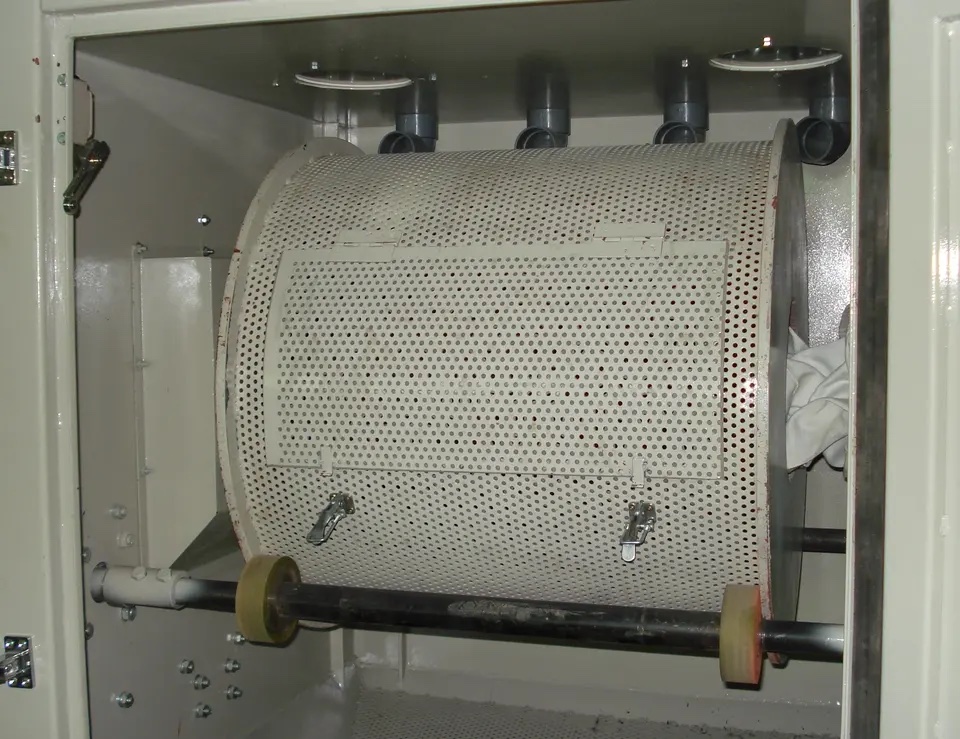

| Model |
1010T tumbling barrel blast machine |
 |
| Main cabinet |
1000 x 1000 x 1810 mm |
| Barrel dia |
600 mm |
| Barrel width |
600 mm |
| Barrel loading |
100 kg |
| Exhauster |
2.2 kw |
| Suction Blasting gun |
2 pc, including Boron carbide nozzle dia 8mm |
| Illuminance |
2 x 18 w |
| Dry filter dust Collector |
18 cotton filter tubes |
| Compressed air source |
7 bar, 1.0-1.5 m3/min dry clean compressed air each gun. |

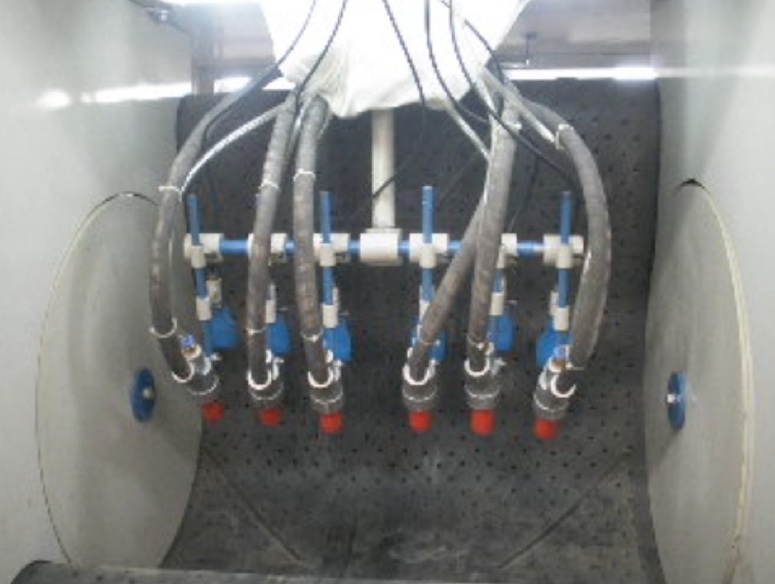

| Model |
1212B tumbling belt blast cabinet |
 |
| Main cabinet |
1200 x 1200 x 2000 mm |
| Blast room |
1060 x 1200 x 860 mm |
| Belt width |
1010 mm |
| Belt loading |
50 kg |
| belt drive motor |
1.5 kw, inverter adjustable speed control |
| Cyclone reclaimer |
Dia 450 x 9500 mm |
| Exhauster |
4.0 kw |
| Suction Blasting gun |
4 pc, including Boron carbide nozzle dia 8mm |
| Gun drive motor |
0.75 kw |
| Illuminance and electrical |
0.25 kw |
| Reverse pulse cartridge dust Collector |
1000 x 1000 x 1860 mm, 4 filter cartridges. |
| Compressed air source |
7 bar, 6 m3/min dry clean compressed air. |
|
