Automatic Rotary Indexing Satellite
Turntable Dry Blast Machines

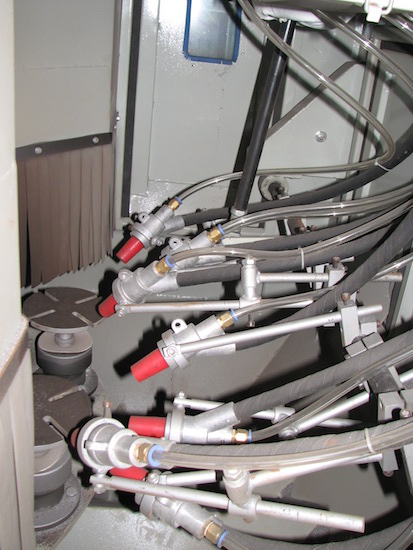

Automatic rotary indexing satellite turntable blast machines consists of cabinet enclosure, a indexing turntable with eight or twelve rotary satellites, oscillating system, eight automatic suction blast guns, one automatic blow-off gun, reclaimer, reverse pulse cartridge dust-collector and PLC control system, etc.

It's suitable for automatica precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, application ranges from delicate deburring to shot peening for small to middle scale production.

Large working chamber allows more options for gun placement and more room for maintenance.

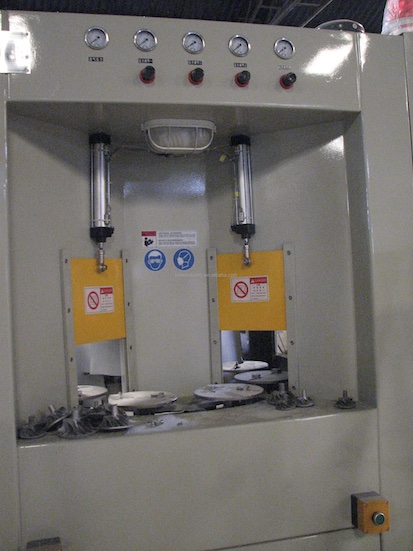

Turntable comes either for one-staion, two-station or three-station indexing. One-station indexing puts one part in each of the blast, blow-off, and load positions, two-station indexing puts two parts in each of the blast, blow-off, and load positions, three-station indexing puts three parts in each of the blast, blow-off, and load positions.

automatic rotary indexing turntable blast machine
automatic rotary indexing table blast machine
automatic rotary indexing table blast machine
rotary indexing satellite table blast machine

Model
1820
1518
1416
Cabinet (WxDxH mm)
1800x2000x2000
1500x1800x2000
1400x1600x2000
Blast Chamber (WxDxH mm)
1750x1950x800
1450x1750x800
1350x1550x800
Loading area
380x380
310x310
280x280
Turntable dia,mm
1350
1150
1050
loading kg max
250
200
200
processed parts(DiaxH mm max)
350x350
280x280
250x250
Satellite
8
8
8
Blast gun
8
8
8
Blow-off gun
2
2
2
Exhauster (Kw)
7.5
5.5
5.5
Air source: Pressure bar
0-7
Flow m3/min
8
8
8

Model
1316
1014
1212
Cabinet (WxDxH mm)
1300x1600x2000
1000x1400x2000
1200x1200x2000
Blast Chamber (WxDxH mm)
1250x1550x800
950x1350x800
1150x1150x800
Loading area
260x260
180x180
180x180
Turntable dia,mm
1000
800
800
loading kg max
200
150
150
processed parts(DiaxH mm max)
230x230
150x150
150x150
Satellite
8
8
8
Blast gun
8
4
4
Blow-off gun
2
2
2
Exhauster (Kw)
5.5
3.0
3.0
Air source: Pressure
5-7 bar
Flow
8 m3/min
4 m3/min
4 m3/min
Automatic rotary indexing satellite turntable wetblast machine
Automatic rotary indexing satellite turntable wetblast machine consists of cabinet enclosure, a indexing turntable with eight rotary satellites, oscillating system, four automatic suction blast guns, sand pump and PLC control system, etc

It's suitable for automatica precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, used for cleaning and finishing all kinds of parts, produce a smooth, a sericeous surface, a bright shine appearance.

Large working chamber allows more options for gun placement and more room for maintenance. Turntable comes two-station indexing, two parts in each of the blast, and load positions. PLC controlled Wetblast Cabinet with 8 work piece holding satellites.
two blast sections with automatic
Automatic rotary indexing satellite turntable wetblast machine

oscillating guns angled for targeted blasting. Workpiece moves in a rotary motion during oscillated blasting for complete coverage. During blasting the 2 processed work piece stops at the entry bay for unloading and 2 new work pieces can be loaded.

Features:
100% stainless steel construction
Pnueumatic & electrical control panel for work piece door entry
PLC controls work piece rotary motion, blast gun oscillation for effective blasting. Indication panel displays all ovements

Sepcifications:
Model: 1212W-4
Main cabinet: L1200xW1200xH2000
Indexing table: dia 800mm, Speed: 3rpm, motor 750W
Satellite: dia 150mm, speed: 0-60rpm, motor: 750W
Blasting gun oscillating system: motor 750W,
Blast gun: 4
Application parts: Dia150mm x H200mm max,
weight: 200kg max.
