Automatic Belt Conveyer Blast Machines

Automatic belt conveyer blast machine consists of cabinet enclosure, oscillating system, multiple automatic suction blast guns, one automatic blow-off gun, two cyclone reclaimers, reverse pulse cartridge dust-collector, belt conveyer system and control system, etc.

It's suitable for automatica precise repeatable blast processing surface of small size components with or without complex profiles with no part-on-part contact possible, application ranges from delicate deburring to shot peening for small to middle scale production.

Large working chamber allows more options for gun placement and more room for maintenance.

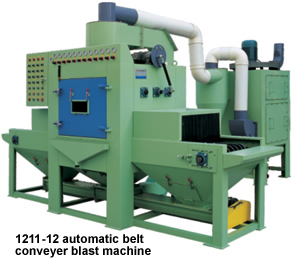

automatic belt conveyer blast machine 1211-12

Features:
.Capability to blast all sides of part simultaneously except for bottom
. Sturdy, 3mm thick mild steel blast cabinet for reduced maintenance and long life
. Single and multiple nozzle manipulation to direct media stream at specific part locations
. Adaptability for different size (46#-90#) of nonmetal media to meet different process needs
. Belt Conveyers to move parts through the cabinet
. Two adjustable cyclone reclaimers and one helix reclaimer for handling blasting media to reduce mdeia consumption.
.Integral ventilation and dust collection.

Model: 1211-12
Processable Components: Length: 1200mm max, Width: 650mm max, Height: 200mm max.
Process capability: 0.2~2m/min
Dimension: 3400mm x 1100mm x 2510mm (L x W x H)
Main cabinet: 1200 x 1100 x 1730mm (L x W x H)
Working chamber: 1200mm x 1100mm x 700mm (L x W x H)
Window: 315 x 215 x 3mm.
Conveyor frame: 1100 x 800 x 950mm, 2pc
Cyclone reclaimer: dia 500 x 650mm, 2 pcs
Blasting gun: 12 pcs, boron carbode nozzle, dia 8mm
Blowoff gun: 1pc, nozzle dia 4mm
Illuminance: 220V, 15W.
Exhauster motor: 3KW.
Conveyer moto: 750W.
Oscillating motor: 750W.
Screw reclaimer motor: 750W.
Reclaimer: 44~87m3/min.
Reverse pulse cartridge dust colletor: 1000x1000x1860mm, 4 filter cartridges dia 325 x600mm.
Weight: 1350kg.
Compressed air source requirement: 5-7bar; 10-15m3/min.

Model: 1085-6
Processable Components: Length: 400mm max, Width:300mm max, Height: 200mm max.
Process capability: 0.81.5m/min
Dimension: 2600mm x 1600mm x 2410mmL x W x H
Main cabinet: 2600 x 850 x 1810mm L x W x H
Working chamber: 1000mm x 850mm x 750mm L x W x H
Blasting gun: 6 pcs, boron carbide nozzle, dia 8mm
Blow-off gun: 1pc, nozzle dia 4mm
Light and control : 200W
Conveyer motor: 200W.
Oscillating motor: 400W.
Dust collector: 1000 x 1000 x 1860mm, reverse pulse dust cleaning.
Exhauster motor: 3KW.
Compressed air source requirement: 5-7bar; 6m3/min. ( 1m3 air tank is required)
Blasting Gun Air Consumption, nozzle dia 8mm
Cmrpessed air pressure (bar)
2.8
4.2
5.6
7.0
Cmrpessed air consumption of each gun (m3/min)
0.51
0.70
0.88
1.07
