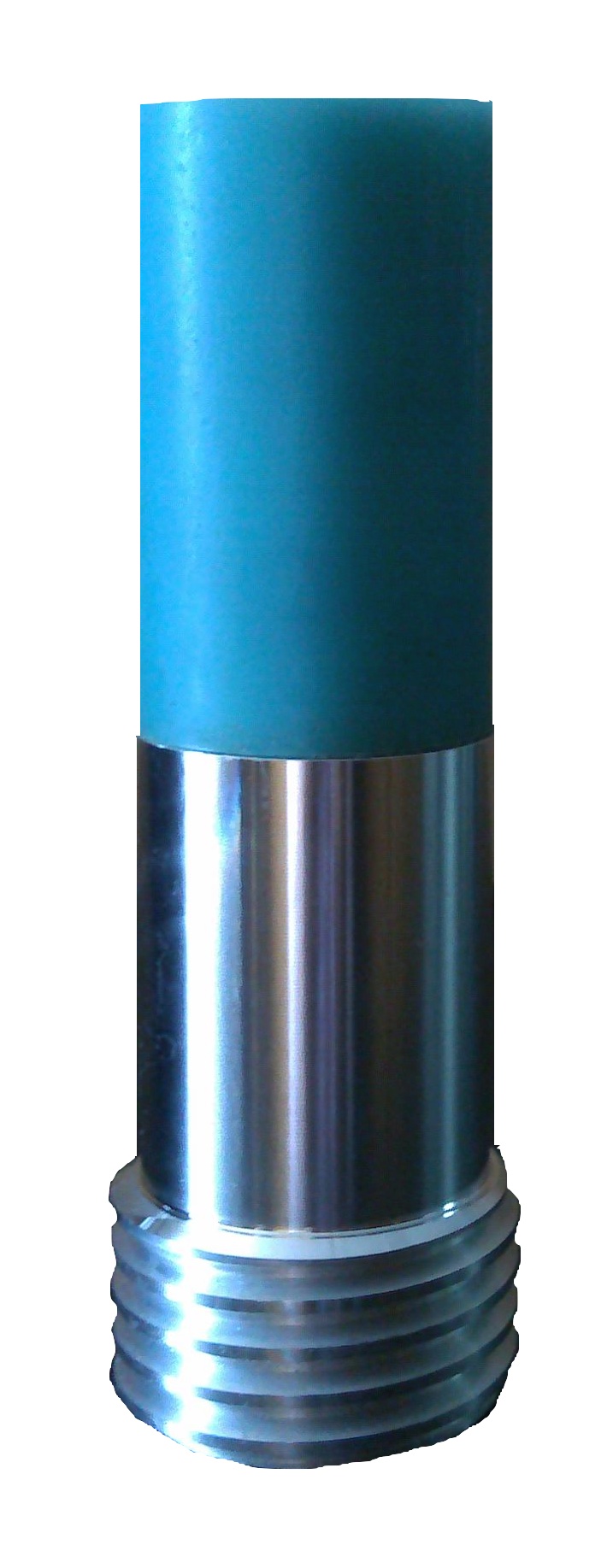

Boron Carbide Venturi nozzles with aluminium jacket
 |
| Entry: 1" |
| Thread: 1-2/4"-11-1/4" |
| Code |
Orifice mm |
Length mm |
| BCVA25/32-4.8/130 |
4.8 |
130 |
| BCVA25/32-6.4/135 |
6.4 |
135 |
| BCVA25/32-7.9/140 |
7.9 |
140 |
| BCVA25/32-9.5/165 |
9.5 |
165 |
| BCVA25/32-11.1/190 |
11.1 |
190 |
| BCVA25/32-12.7/215 |
12.7 |
215 |
|
|
 |
| Entry: 1-1/4" |
| Thread: 2 "-4-1/2" |
| Code |
Orifice mm |
Length mm |
| BCVA32/50-3.25/100 |
3.25 |
100 |
| BCVA32/50-4.0/110 |
4.0 |
110 |
| BCVA32/50-4.8/130 |
4.8 |
130 |
| BCVA32/50-4.8/130 |
4.8 |
130 |
| BCVA32/50-6.4/135 |
6.4 |
135 |
| BCVA32/50-7.9/140 |
7.9 |
140 |
| BCVA32/50-9.5/165 |
9.5 |
165 |
| BCVA32/50-9.5/187 |
9.5 |
187 |
| BCVA32/50-11.1/190 |
11.1 |
190 |
| BCVA32/50-12.7/215 |
12.7 |
215 |
|

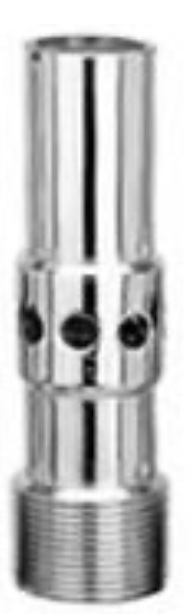

Boron Carbide double Venturi nozzles with aluminium jacket
 |
| Entry: 1", |
| Thread: 1-1/4" "-11-1/4" |
| Code |
Orifice mm |
Length mm |
| BCDVA25/32-4.8/140 |
4.8 |
140 |
| BCDVA25/32-6.4/140 |
6.4 |
140 |
| BCDVA25/32-7.9/160 |
7.9 |
160 |
| BCDVA25/32-9.5/160 |
9.5 |
160 |
| BCDVA25/32-11.1/185 |
11.1 |
185 |
| BCDVA25/32-12.0/185 |
12.0 |
185 |
| BCDVA25/32-14.0/205 |
14.0 |
205 |
| BCDVA25/32-16.0/205 |
16.0 |
205 |
|
|
| |
| Entry: 1-1/4", |
| Thread: 2 "-4-1/2" |
| Code |
Orifice mm |
Length mm |
| BCDVA32/50-4.5/133.4 |
4.5 |
133.4 |
| BCDVA32/50-6.5/133.4 |
6.5 |
133.4 |
| BCDVA32/50-8.0/139.7 |
8.0 |
139.7 |
| BCDVA32/50-10.0/165.1 |
10.0 |
165.1 |
|
Boron carbide venturi nozzles with stick-up aluminium jacket
 |
| For ID 25mm hose |
| Code |
Orifice mm |
Length mm |
| BCVA25S-8/100 |
8.0 |
100 |
| BCVA25S-10/100 |
10 |
100 |

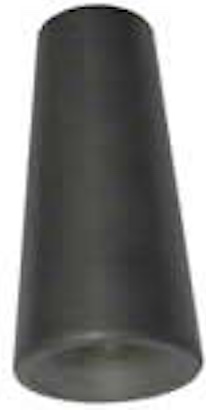

Boron carbide straight nozzles
 |
| Code |
OD mm |
ID mm |
Length mm |
| BCS15 |
15 |
5 |
45 |
| BCS21 |
21 |
3
4
5
6
7
8
9
10 |
33 |
| 35 |
| 40 |
| 45 |
| 50 |
| 60 |
| 75 |
| 80 |
| 90 |
| 100 |
| BCS25 |
25 |
12 |
85 |
| Aluminium jacket with threds available upon require. |
Tungsten carbide venturi nozzles with aluminium jacket
|
| Entry: 1" |
| Thread: 1-1/4"-11-1/4" |
| Code |
Orifice mm |
Length mm |
| TCVA25/32-6.4/140 |
6.4 |
140 |
| TCVA25/32-8.0/145 |
8.0 |
145 |
| TCVA25/32-9.5/165 |
9.5 |
165 |
| TCVA25/32-11.0/200 |
11.0 |
200 |
| TCVA25/32-12.7/225 |
12.7 |
225 |
|
|
|
| Entry: 1-1/4" |
| Thread: 2 "-4-1/2" |
| Code |
Orifice mm |
Length mm |
| TCVA32/50-6.4/130 |
6.4 |
130 |
| TCVA32/50-8.0/145 |
8.0 |
145 |
| TCVA32/50-9.5/165 |
9.5 |
165 |
| TCVA32/50-11.0/200 |
11.0 |
200 |
| TCVA32/50-12.7/210 |
12.7 |
210 |
| TCVA32/50-12.7/225 |
12.7 |
225 |
| TCVA32/50-14.0/225 |
14.0 |
225 |
| TCVA32/50-16.0/225 |
16.0 |
225 |
| TCVA32/50-19.0/225 |
19.0 |
225 |
|
Tungsten carbide double venturi nozzles with aluminium jacket
 |
| Entry: 1" |
| Thread: 1-1/4"-11-1/4" |
| Code |
Orifice mm |
Length mm |
| TCDVA25/32-6.5/145 |
6.5 |
145 |
| TCDVA25/32-8.0/175 |
8.0 |
175 |
| TCDVA25/32-9.0/178 |
9.0 |
178 |
| TCDVA25/32-10/178 |
10.0 |
178 |
| TCDVA25/32-11/195 |
11.0 |
195 |
| TCDVA25/32-12/195 |
12.0 |
195 |
Tungsten carbide venturi nozzles with stick-up aluminium jacket
 |
| For ID 32mm hose |
| Code |
Orifice mm |
Length mm |
| TCVA32S-7.9/100 |
7.9 |
100 |
| TCVA32S-9.5/100 |
9.5 |
100 |
| TCVA32S-11.5/100 |
11.5 |
100 |
| TCVA32S-12.7/100 |
12.7 |
100 |
|
|
|
| For ID 32mm hose |
| Code |
Orifice mm |
Length mm |
| TCVA32S-8/120.7 |
8.0 |
120.7 |
| TCVA32S-9.5/20.7 |
9.5 |
120.7 |
| TCVA32S-11/120.7 |
11.0 |
120.7 |
| TCVA32S-12.7/120.7 |
12.7 |
120.7 |
|
Tungsten carbide straight nozzles
 |
| Code |
OD mm |
ID mm |
Length mm |
| TCS16 |
16 |
7 |
35 |
| TCS20 |
20 |
6
8
12 |
35 |
| 45 |
| 60 |
| Aluminium jacket with threds available upon require. |
|
