Key Logo Coining Machine

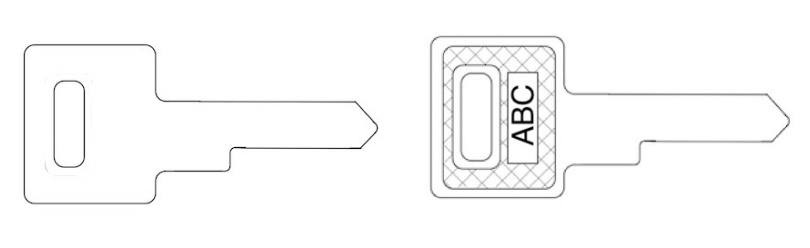

AUTOMATIC KEY COINING MACHINE SK1026 adopts high frequency hydraulic Commutator device and AC variable frequency speed control device, integrating punching and imprinting together, used for key punching and trademark imprinting, as well asimprinting pattern or trademark of other similar products.

Features:

1/. Operation stable, high accuracy, low noise ( less than 80 dB0, low vibrating.

2/. Automatic feeding.

3/. High efficiency, 120pc/min, max.

4/. Installation and operation simple and easy.

5/. Good safety protection, automatic fault alarm and shutdown running.

6/. Option: vibrating feeder.

Model

SK1026

Pressure

980KN

Efficiency

i0-120 pc/min

Max key length

60mm

Shut Height

230mm

Hydraulic pump motor

5.5KW

Feed turntable Motor

0.75kw VFD

Cooling motor

0.75W

Dimension

1420 x 1100 x 1400mm

Weight

1200kg

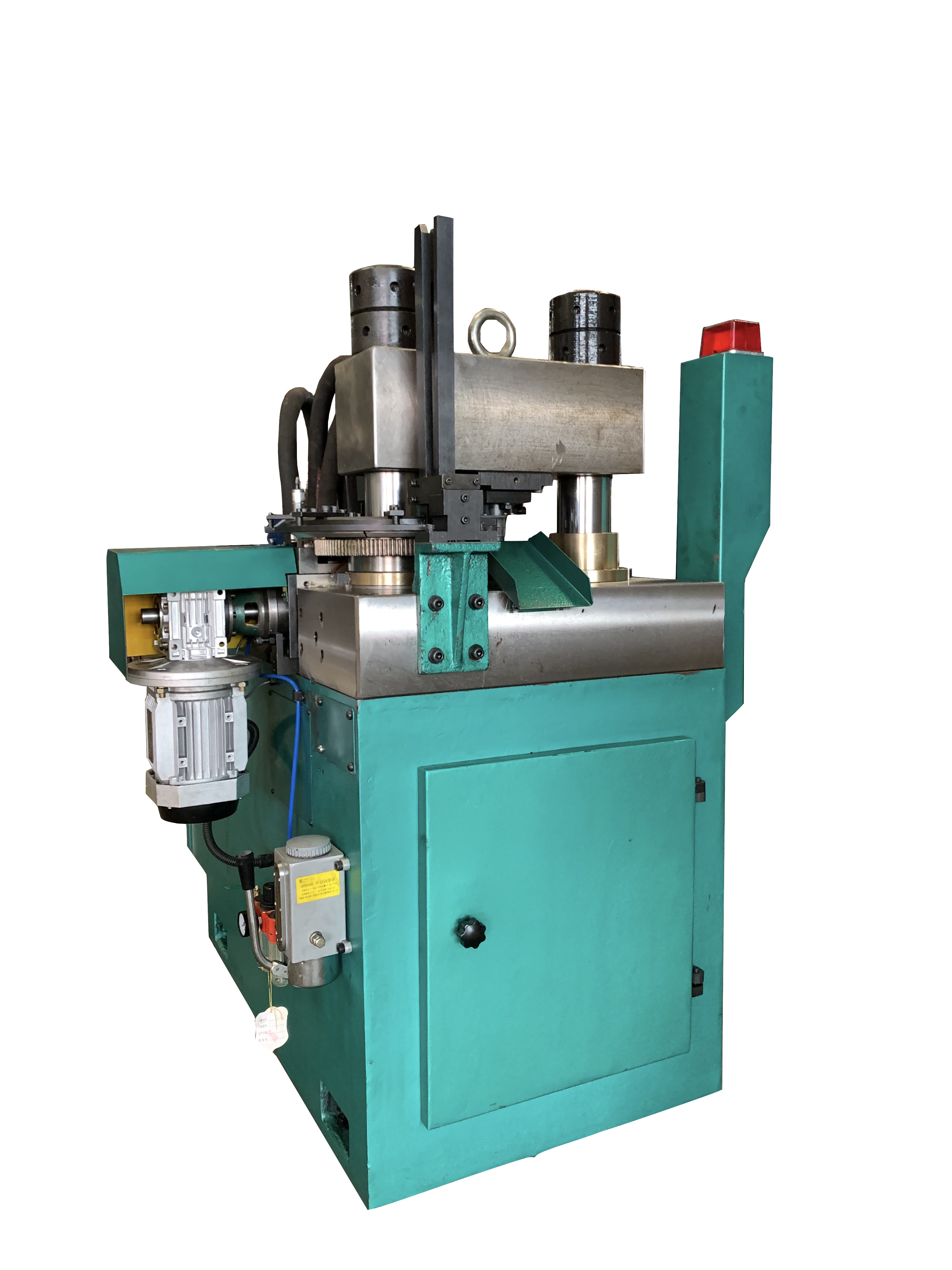

AUTOMATIC KEY COINING MACHINE SK1026
