Tub Vibratory Finishing Machines

Tub vibratory finishing machines are suitable for processing medium and large sized delicate components with complex profile for deburring, charmferring, polishing, cleaning, burnishing, brightening, smoothing all kinds of metal, plastic and ceramic workparts. The delicate components can be processed individually in separate processing chamber separated by dividers to prevent part-on-part impact.
Tub vibratory finishing machine is also widely used for process marble stone to achieve antique appearance. Feature 1. Driven by two vibratory motors, one each at the end of tub. 2. Tub can be divided into separate processing chambers by dividers. 3. Tub is lined wear resistant polyurethane for longer worklife.

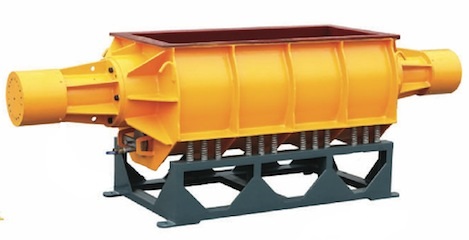

XZG1800	XZGC500

XZG	Capacity L	Tub Inter Dimension L x W x H (mm)	PU mm	Power Kw	Overall Dimension L x W xH (mm)	Weight Kg
XZG15*	15	440 x 208 x 215	10	0.37	526 x 380x 555	85
XZG100	100	664 x 400 x 460	20	2 x 1.1	1320 x 615 x 860	350
XZG140*	140	610 x 500 x 515	20	1.5	7400 x 715 x 1100	250
XZG500	500	1310 x 690 x 700	25	2 x 2.2	2670 x 1000 x 985	700
XZG900	900	1200 x 900 x 850	25	2 x 4.0	2700 x 1050 x 1100	900
XZG1000	1000	2200 x 730 x 645	25	2 x 4.0	3662 x 970 x 1080	1600
XZG1200	1200	2000 x 750 x 854	25	2 x 4.0	3000 x 1050 x 1100	2100
XZG1800	1800	2020 x 1120 x 940	25	2 x 5.5	3500 x 1336 x 1256	2800
XZG2800	2800	1580 x 1510 x 1270	25	2 x 9.0	3300 x 1830 x 1740	4000
XZGC	Capacity L	Tub Inter Dimension L x D/W x H (mm)*	PU mm	Power Kw	Overall Dimension L x W xH (mm)	Weight Kg
XZG240C**	240	690 x 670/524 x 625	16	2 x 1.1	1880 x 880 x 920	450
XZG500C**	500	1310 x670/ 524 x 625	16	2 x 2.2	2870 x 880 x 920	700
XZG750C**	750	2000 x/670/ 524 x 625	16	2 x 2.2	3354 x 880 x 920	800
Remark	* one motor only Processing tub with curved well. * D=tub diameter, W=top open wide

Options:

VFD speed controller.
Separate divider sheets.
Compound pump and water flowmeter.
Sound-proof lid.

compound dosing pump + water flowmeter

Compound dosing pump+water flow meter

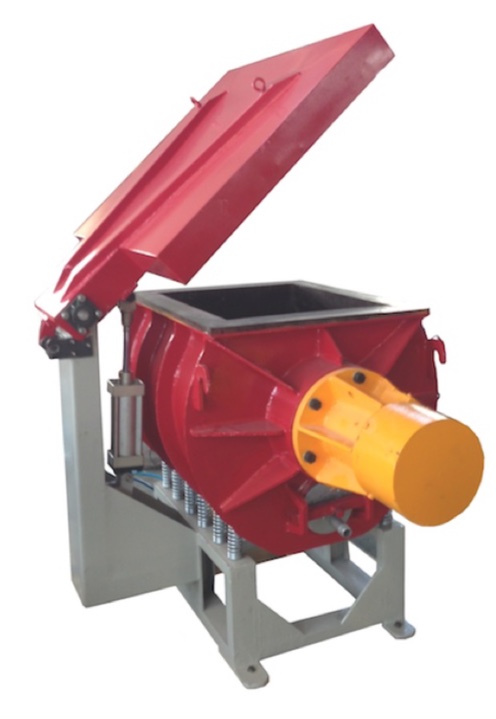

XZGC700 with sound lid

XZGC700 with sound proof lid
