| Vibratory Dryers |
Vibratory Dryers are mostly suitable for for drying small to mid-sized components
requiring a clean surface without any water stains after wet mass finishing processing.
|
|
 |
Model |
ZDHG150 |
ZDHG600 |
Capacity (L) |
150 |
600 |
Loading Heigh (mm) |
750 |
960 |
| Unloading Heigh (mm) |
750 |
800 |
| Vibratory Motor |
Power (KW) |
2.2 |
5.5 |
Speed (RPM) |
1440 |
1440 |
| Bowl Channel Width (mm) |
190 |
400 |
| PU Line Thickness (mm) |
20 |
30 |
| Heating Tube Power (KW) |
1.5 x 4 |
1.5 x 6 |
| Fan Power (KW) |
0.065 |
0.065 |
| Height (mm) |
850 |
1050 |
| Weight (kg) |
300 |
1200 |
| Installation Area (mm) |
1900 x 1000 |
2600 x 1700 |
|
| |
|
| Centrifugal Hot Aire Dryers |
Hot air centrifugal dryer is used to ensure the parts stain-free and corrosion free dried, following wet mass finishing processing, which is very important for the parts to be
painted or plated as a final operation, most suitable for processing small parts.
Features
- Drying by hot air and vacuum.
- Inner centrifugal basket made of sainless steel
with holes, water removed from the surfaces of the parts
by centrifugal force which increses working efficience.
- Heated air shortens the drying time and evaporates the moisture and protects parts from rust
and corrosion.
- Protcet device shuts off power
automatically when processing finished or the cover opened
Option: Inverter variable speed control for more process options.
|
|
|
400B
|
500B |
Drum
Size |
Dia.380xH280mm |
dia480xH280mm |
Drum
Loading |
28kg or 1/3 drum high |
40kg or 1/3 drum high |
Drum
Speed, max |
536r/m |
470r/m |
Motor
Power |
0.75KW |
1.5KW |
Calorifier
Power |
1.8KW |
3.0KW |
Temperature |
50¡ãC-80¡ãC |
50¡ãC-80¡ãC |
Dimension |
780x 600x 750mm |
1000x 800x 860mm |
Weight |
161kg |
242kg |
|
 |
| |
|
| Vibratory Separator |
Vibratory separator is used to separating parts from media or classifing undersized media outside mass finishing machines.
It can be connected to the discharger door of a vibratory finishing machines or other mass finishing machines for automatically separating purpose.
After attached rinsing water faucet, it can be also used as washing machine.
Features
- Driven by horizontal motors
- Quick release fastening system permits fast screen change.
- Replaceable screen can be made of stainless steel which is durable and rustproof or coated with PU to eliminate abrasion.
|
Model |
Dimension
L x W x H (mm) |
Sieve
Area
(mm) |
Weight
(kg) |
Power
(W) |
ZC25 |
1320x622x800 |
780x500 |
90 |
125x2 |
ZC50 |
1650x800x800 |
1180x500 |
150 |
250x2 |
|  |
|
| |
|

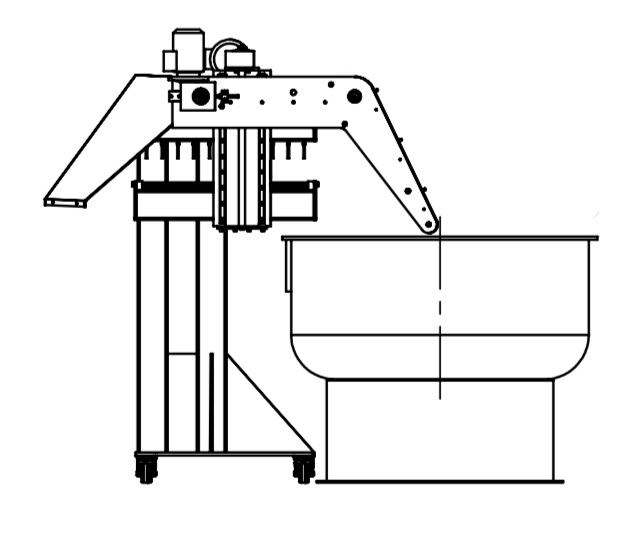

| Magnetic Separator |
Magnetic separator is mainly used to separate the iron containing workpieces from the abrasive media after finishing processing, and widely used in large quantity of surface processing of parts. This machine improves the production efficiency by automatically and quickly separating the workpieces from the similar size of abrasive media.
Features:
Adopt demagnetizer for demagnetizing the magnetized workpiece.
The height of component for separation is adjustable for different polishing equipment.
Conveyor is speed adjustable controlled by VFD
Adopt universal wheels at the bottom of the equipment, which makes it easy moved to different work site. |
Model |
MGS300 |
MGS400 |
MGS600 |
Drum wid,mm |
185 |
300 |
360 |
Conveyor motor, Kw |
0.55 |
0.75 |
0.75 |
Conveyor speed, m/s |
0-0.5 |
Magnetic pick up adjusting height,mm |
400 |
|
450 |
Lift motor,Kw |
0.55 |
De-magnetic device |
TC-2 |
Size,mm |
1514¡Á750¡Á1900 |
1640x800x2030 |
1700x1200x2330 |
Weight, Kg |
370 |
480 |
550 |
|
 |
 |
 |
|
