Centrifugal Disc Finishing Machine
Centrifugal Disc Finishing Machines are suitable for deburring,chamferring, polishing all kinds
of metal, plastic and ceramic workparts in small to medium size at high speed.
Centrifugal Disc Finishing Machines are ideal finishing
machine especially for complexed profile and lamella proteiform
parts.
High speed processing allows for finishing
performance upto 10 times faster than vibratory machine and over 20 times than
barrel machine.
The speed of spining disc
can be regulated steplessly.
Low noise, movement smoothly and
stably.
The working barrel lined Polyurethane inside for protracting working life.
LLB50, LLF50 and LLF120, the working barrel can be manually pivoted 100° for easy discharging of medias and parts.
|
 |
 |
 |
Model |
LLB10 |
LLB20 |
LLB50 |
LLF50 |
LLF120 |
LLD230 |
Barrel capacity (L) |
11 |
24 |
50 |
50 |
120 |
230 |
Working capacity (L) |
10 |
20 |
25 |
25 |
60 |
130 |
Motor power (KW) |
0.75 |
1.1 |
1.5 |
1.5 |
4.0 |
7.5 |
Motor speed (RPM) |
1500 |
1500 |
1500 |
125-1250 |
125-1250 |
940 |
Spiner disc speed (RPM) |
0-350 |
0-250 |
50-180 |
50-180 |
50-160 |
0-140 |
Discharge height (mm) |
500 |
400 |
280 |
280 |
320 |
550 |
Dimensions (mm) |
L |
730 |
1020 |
1000 |
1390 |
1740 |
1620 |
| W |
630 |
800 |
660 |
700 |
900 |
1008 |
| H |
1060 |
1360 |
1120 |
1240 |
1470 |
1135 |
Noise (dB) |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
≤80 |
Weight (Kg) |
200 |
300 |
300 |
400 |
600 |
1100 |
|
LLF120M and LDG240M fitted with motor drivn pivoting system for automatically discharging mixture of parts and media and vibratory separatot for automaically separating media from parts.
Model |
LLF120M |
Barrel capacity |
120 L |
Working capacity |
60 L |
Spiner motor |
Power |
4.0 kw |
| Speed |
960 rpm |
Spiner disc speed |
0-160 rpm |
| Vibratory motor |
Power |
2 x 0.25kw |
| Speed |
1450 rpm |
| Pivot motor |
Power |
0.75 kw |
| Speed |
910 rpm |
Barrel pivoting
| 150 degree |
| Discharge height |
Meida |
380 mm |
| Parts |
250 mm |
Dimensions |
1700 x 1380 x 1410 mm |
Weight |
1100 kg |
Operation noise (dB) max |
≤80 |
|
 |
 |
Model |
LDG240M |
Barrel capacity |
240 L |
Working capacity |
150 L |
Spiner motor |
Power |
7.5 kw |
| Speed |
970 rpm |
Spiner disc speed |
0-140 rpm |
| Pivot motor |
Power |
1.5 kw |
| Speed |
1400 rpm |
| Vibratory motor |
Power |
2 x 0.25kw |
| Speed |
1450 rpm |
Barrel pivoting |
100 degree |
Dimensions |
2450 x 1700 x 2000 mm |
Weight |
2000 kg |
|
Model |
LLF120A |
Barrel capacity |
120 L |
Working capacity |
60 L |
Spiner motor |
Power |
5.5 kw |
| Speed |
1440 rpm |
Spiner disc speed |
0-160 rpm |
| Pivot/loader motor |
Power |
1.1 kw |
| Speed |
910 rpm |
| Vibratory motor |
Power |
2 x 0.12kw |
| Speed |
1450 rpm |
Barrel pivoting |
140 degree |
Dimensions |
2060 x 1700 x 1200mm |
|
Weight |
1200 kg |
|

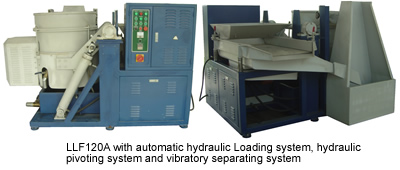

LLF120A automatic centrifugal dics finishing machine, fitted with hydraulic loading system for automatically feeding media and parts into the working barrel, hydraulic pivoting system for automatically discharging the mixture of media and parts into intermediate hopper, vibratory separating system for separating media from parts, classifing undersiaed media, return the the reusable media to loader and discharging parts automatically.. |
|
 |
LLF230x2 Automatic double batch centrifugal dics finishing machines combinate two automatic disc finishing machine by sharing one intermediate hopper and one screening machine only. While one batch with finished parts is separated on the screening machine, a second batch is processed in the work bowl, save idle times for parts/media separation. |
| Model |
LLF230x2 |
| Capacity |
230L x 2 |
| PU thickness |
12mm |
| Spiner motor Power |
11kw x 2, 960rpm |
| Spiner Speed |
0-140 rpm |
| Hydraulic power |
21MPa. Pump 3kw, 1430rpm |
| Separator system |
1.12kw |
| Loading |
200L x 2 |
| Compound dosing |
0.7Mpa , 13L/hx2 |
| Water dosing |
0.7Mpa , 240L/h |
| Weight |
4000kg |
| Dimension |
L |
4500 mm |
| W |
3375 mm |
| D |
1780 mm |
|
 |
|
|
|
|
