Operator Propelled Thermoplastic Applicators
l. Material tank: With vertical manual agitating device.
            Heating temperature:0-260 , freely adjutable.
            Capacity: 75kg.
             RST-I: Insulating tank, made of antioxidation cold rolled steel with stainless steel jacket.
             RST-II: Insulating tank, made of antioxidation cold rolled steel.
2. Marking bucket: Screeding structures made of heat-resistant, abrasion-resistant, antioxidation steel. Drawknife is made of tungsten carbide.
3. Heating system: Consist of Valve, furnace, burn nozzle, gas meter, torch and hose, Fueled by one 15kg LPG jar (LPG jar supplied by user).
4 . Glass bead bin:
With window for checking beads quantity, capacity:15kg.
5. Glass bead dispenser:
Automatical quantitative dispensing synchronising with paint screeding system.
6. Framework:
Steel welding frame, surface chrome-plated or coated heat-resistant coating.
7. Locking rear swivel caster: locks into straight or radius mode for striping straight line, arc or curves line.
8. Lineation width: 100mm, 150mm, 200mm, 300mm, available by changing marking bucket.
9. Lineation thickness: 1.5-2.5mm, freely adjustable.
10. Dimension: 1200mm(L) x 830mm(W) x 1050mm(H).
11. Weight: 155kg (with 150mm bucket, exclusing LPG jar).

Option: 400mm or 450mm bucket for zebra-crossing marking.

Operator Propelled Thermoplastic Apllicator

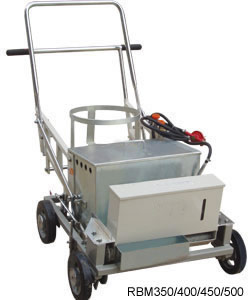

Thermoplastic Applicator for Zebra Crossing
Specially designed, operator-propelled, mainly used for marking zebra crossing on pavement, parking lot, airfield, urban, etc, easy use and less maintain.
1. Marking bucket: Screeding structure marking bucket is integrated with material tank with a filter screen inside. Drawknife is made of  heat-resistant, abrasion-resistant, antioxidation alloy steel. Capacity: 50kg.
2. Heating system: Consist of valve, furnace, burn nozzle, gas meter, torch and hose, fueled by one 15kg LPG jar. (jar supplied by user) 3. Glass beads bin: Automatical quantitative dispensing synchronising with paint screeding system,
with window for checking the quantity of glass bead. Capacity: 30kg.
4. Chassis: Steel welding frame, surface chrome-plated or coated heat-resistant coating.
5. Lineation width:
350mm,400mm,450mm,500mm available by changing market bucket.
6. Lineation thickness: 1.5-3.5mm, freely adjustable.
7. Dimension:1300mm (L) x 750mm (W) x 900mm (H).
8. Weight: 142kg (with bucket 400mm, excluding LPG jar).
operator propelled thermoplastic applicator

Operator Propelled Primer Sprayers
Specially designed for spray primer prior to apply thermoplastic paint on the road at construction spot.
l    Engine: 5.0 HP four-stroke air -cooled gasoline engine.
2    Pump: abrasion-resistant piston gasoline pump, exhaust: 0.2m3/min, ensure large flow and stable pressure.
3    Flow: 3.5L /min.
4    Premier coating storage pot: with pressure safety valves and filter screen inside. Capacity: 40kg. Pressure: 0.8Mpa.
5    Spray gun: Brake handle controlled spray gun with reversible striping tip, easy use and repair at spot. Spray width:100-450mm.
6    Chassis: Steel welding frame, surface chrome-plated or coated heat-resistant coating.
7    Rubber wheel: Left-front, right-front wheels diameter:240mm; Rear wheels diameter : 190mm.
8    Guide rod: Adjustable freely to up, down, left, right.
9    Handle bar: Height is adjustable freely according to the demands of operator.
10  Locking rear swivel caster: Brake handle controlled, locks into straight or radius mode for striping straight line, arc or curves.
11   Dimension: 1100mm(L) x 950mm(W) x 970mm(H).
12   Weight: 113kg.

Remark: XT-IV can be also used for sweeping(flow: 0.163/min) road surface before primer spray.

operator propelled primer sprayer
operator propelled primer sprayer and sweeper
